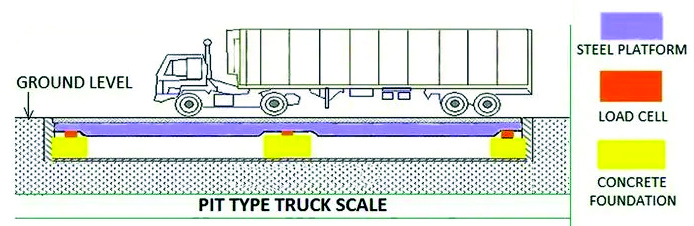

Pit type weighbridges are robust in construction and require less space. Being level with the surface, these weighbridges allow vehicles to easily drive onto the platform. They are ideal for non-hilly terrain where pit construction is not costly. Since the platform is at ground level, vehicles can approach the weighbridge from any direction, making them a preferred choice for most public weighbridges.
At Axis International Corporation, our weighbridge platforms are carefully designed and engineered to withstand heavy loads without damage. They are highly durable, and the girders and plates used in manufacturing are chosen with utmost care and subjected to strict quality checks.
Features

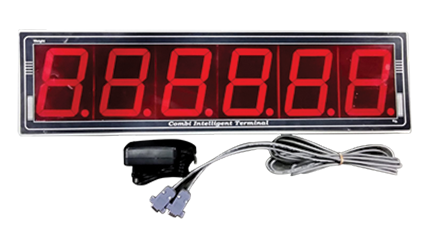

JUMBO DISPLAY
Axis remote display is used for viewing result from long distance.
The remote display is built with super bright high luminous digital segment which are visible from a long distance even in broad day light.

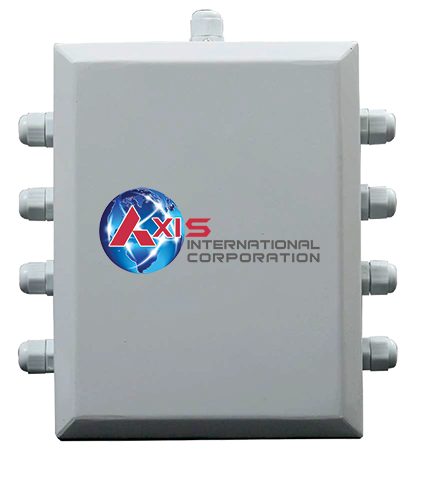

JUNCTION BOX
Axis Junction Box provides fast and easy connection up to 12 Load cells and play an important role in weighbridge.

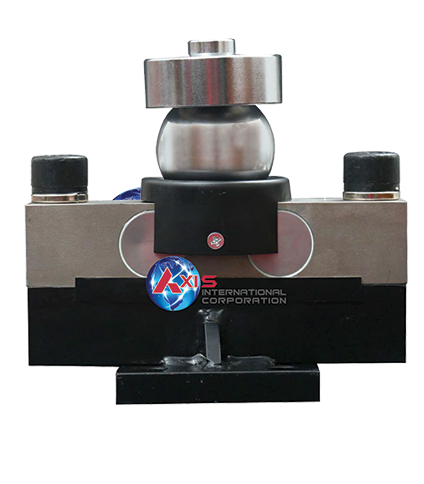

LOAD CELL
We offer conventional and digital self restoring compression load cells for enhanced performance of our weighbridge.

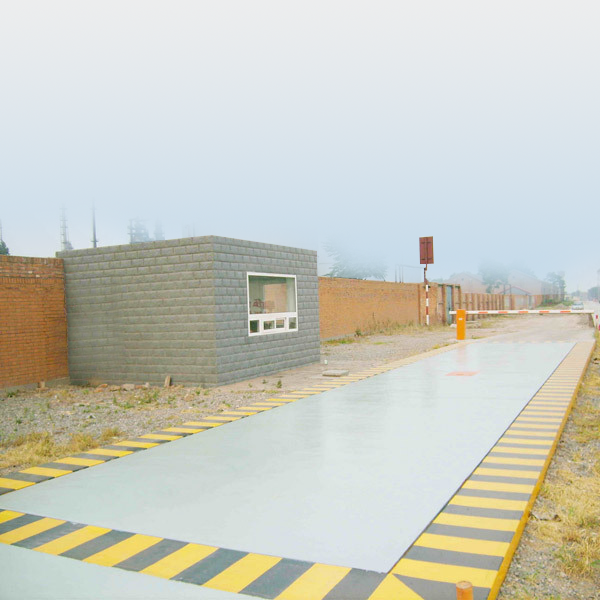

The Pit type weighbridge from Axis is designed for industries that require accurate vehicle weighing while optimising available space. Installed at ground level, this weighbridge offers a flush surface that allows vehicles to move seamlessly on and off the platform.
In industries such as logistics, mining and construction, precision and efficiency are critical. The Pit type weighbridge ensures accurate load measurement while maintaining smooth traffic flow within the premises.
If your facility has space constraints or requires a clean and organised layout, this weighbridge is an ideal solution for reliable and efficient operations.
It is a weighbridge installed below ground level with a platform flush to the surface.
It saves space, improves traffic flow and provides accurate weighing.
Yes, it is designed to handle high-capacity loads in industrial environments.
Yes, it requires pit construction and proper drainage system.
Logistics, mining, construction, agriculture and manufacturing industries use it.
Pit type saves space but requires more civil work, while pitless is easier to install.
| Capacity (Ton) | Resolution (kg) | Platform Size (Meter) | No. of Loadcells |
|---|---|---|---|
| 5 / 10 / 15 Ton | 2 kg | 4.2 M × 2.4 M | 4 |
| 30 – 50 Ton | 5 kg | 6.7 M × 3 M | 4 / 6 |
| 40 – 60 Ton | 5 / 10 kg | 7.5 M × 3 M | 4 / 6 |
| 40 – 80 Ton | 5 / 10 kg | 9 M × 3 M | 6 |
| 50 – 80 Ton | 5 / 10 kg | 10 M × 3 M | 6 |
| 60 – 100 Ton | 5 / 10 / 20 kg | 12 M × 3 M | 6 |
| 60 – 100 Ton | 10 / 20 kg | 14 M × 3 M | 6 |
| 80 – 150 Ton | 10 / 20 kg | 18 M × 3 M | 8 |
| 80 – 150 Ton | 10 / 20 kg | 18 M × 3 M | 8 |
| 80 – 150 Ton | 10 / 20 / 50 kg | 20 M × 3 M | 8 |
| 80 – 150 Ton | 10 / 20 / 50 kg | 22 M × 4 M | 8 |
